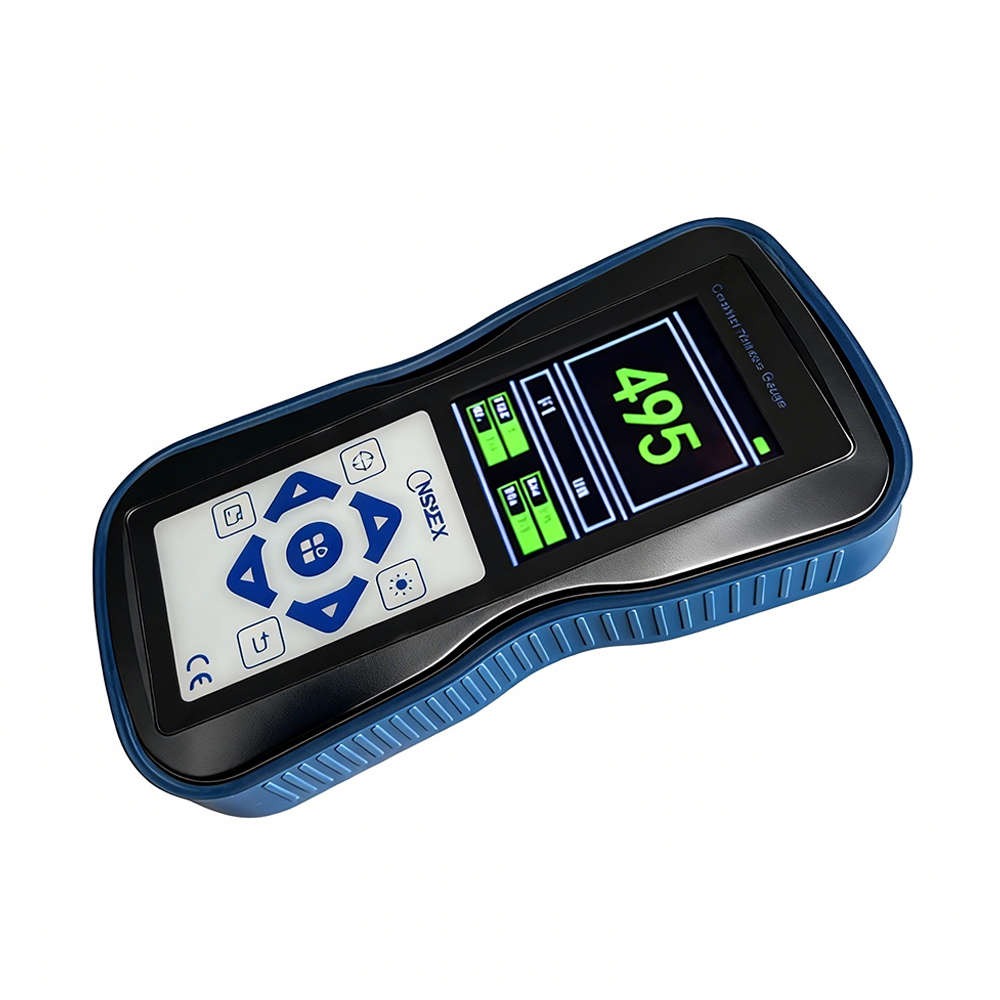

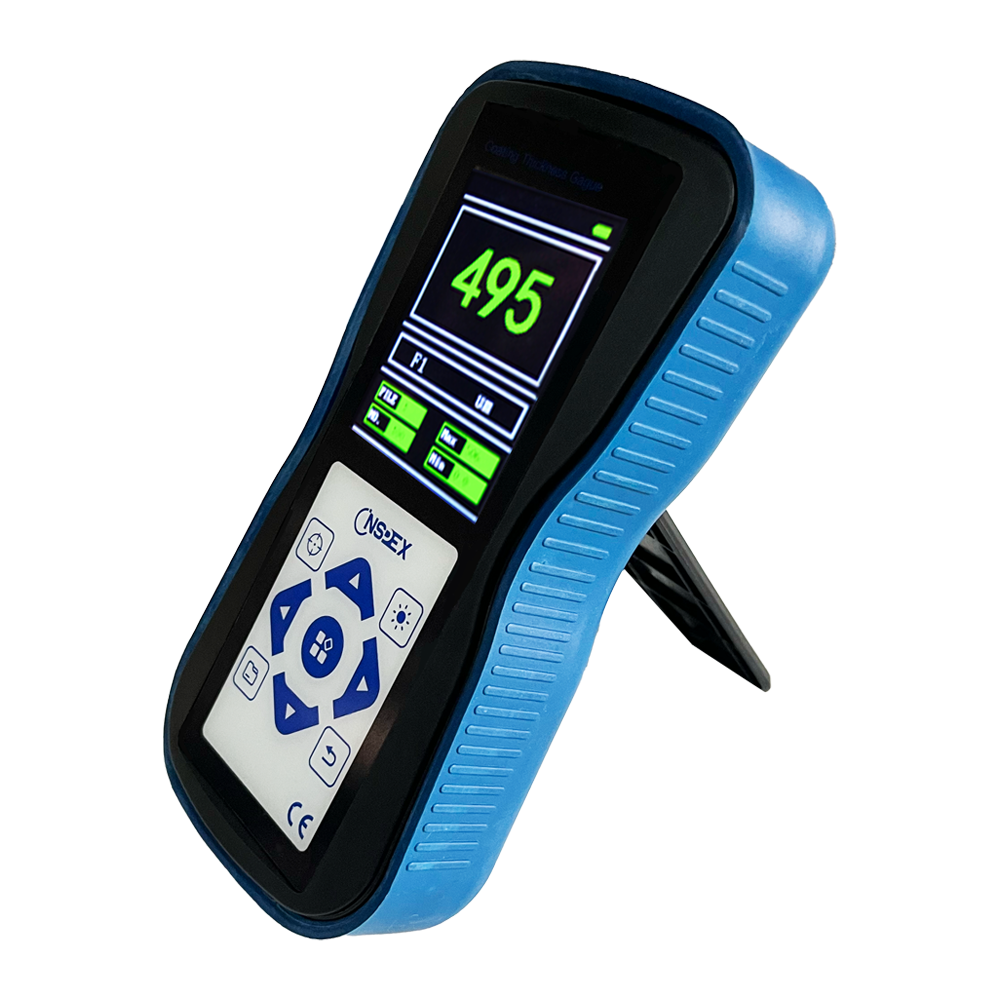

Coating Thickness Gauge INSPEX-COATPRO 560
-
$550
$917
INSPEX-COATPRO 560 is widely used in electroplating, corrosion protection, aerospace, automotive, shipbuilding, light industry and inspection. It meets diverse needs via probe replacement, with two optional measuring methods: magnetic permeability and eddy current.
Bluetooth enables clear, convenient data reading and transmission; its LCD display allows intuitive, clear data reading.
F and N probe can support different materials.
✅7-Day Return & Exchange Without Reason
✅365-Day Official Warranty
Guaranteed Safe Checkout
Performance
Measuring Range:F400：0~400μm N400：0~400μm F1：0~1250μm F1/90：0~1250μm N1：0~1250μm F10：0~10000μm CN02：10~200μm
Accuracy:
1-F400、N400 Probe--One point calibration:2%+0.７);Two point calibration:(1%+0.7)
2-F1、F1/90、N1、CN02 Probe--One point calibration:(2%+1) ;Two point calibration:(1%+1)
3-F10 Probe--One point calibration:(2%+10);Two point calibration:(1%+10)
Calibration:5 point calibration
Resolution:0.1μm(0-99.9μm)/1μm （over100μm）
Working Environment Temperature:0 ℃~50 ℃
Humidity:20%～90%
Operation Mode:Direct testing & Group testing
Measuring mode:Continuous measurement / single measurement
Memory:500data
Communication:USB/WIFI
Battery
Testing Probe Reference
Probe Mode | F400 | F1 | F1/90 | F10 | N400 | N1 | CN02 | ||||
Working Principle | Magnetic Permeability Method | Eddy Current Method | |||||||||
Measuring range |
0～400 |
0～1250 |
0～10000 | 0～400 | 0～1250 | 10～200 | |||||
( Copper covered with chromium 0～40) | |||||||||||
Resolution (mm) | 0.1 | 0.1 | 10 | 0.1 | 0.1 | 1 | |||||
Tolerate(mm) | One point calibration(mm) | ±(3%H+0.7) | ±(3%H+1) | ±(3%H+10) | ±(3%H+0.7) | ±(3%H+1.5) | ±(3%H+1) | ||||
Two point calibration( m) | ±(1%H+0.7) | ±((1%H+1) | ±(1%H+10) | ±(1%H+0.7) | ±1%H+1.5 | -------- | |||||
Meas | The minimum | Convex | 1 | 1.5 | Straight | 10 | Convex | 1.5 | 3 | Straight | Straight |
Base |
Coating | Organic materials and other non metallic coating (such as: paint, paint, enamel,etc) | |
Cover thickness < 100mm | Cover thickness > 100mm | ||
Such as magnetic |
Measuring Area > 30mm | F400: 0～400mm F1 : 0～1250mm | F400 :0～400mm F1:0～1250mm F10:0～10mm |
Measuring Area < 30mm | F400: 0～400mm | F1 : 0～1250mm F400: 0～400mm | |
Such as，copper， | Measuring Area > 10mm | N400 :0～400mm | N400 0～400mm |
N1 :0～1250mm | N1 : 0～10mm | ||
Measuring Area < 10mm | N400 :0～400mm | N1 : 0～1250mm | |
N400: 0～400mm | |||
Probe Coating | Non magnetic metal layer (such as: chromium, zinc, aluminum,copper, tin, silver, etc.) | ||
Cover thickness < 100mm | Cover thickness < 100mm | ||
Such as magnetic |
Measuring Area > 30mm | F400: 0～400mm F1: 0～1250mm | F400: 0～400mm F1: 0～1250mm F10: 0～10mm |
Measuring Area < 30mm | F400: 0～400mm | F400:0～400µm F1: 0～1250mm | |
Such as copper, | Measuring Area > 10mm | Only for copper plating | -------- |
Measuring Area < 10mm | -------- | -------- | |
Plastic, non metal |
Measuring Area > 7mm |
CN02: 10～200mm |
CN02: 10～200mm |
| Quality Card | 1 |
| Probe F1 | 1(0~1250μm) |
| Probe N1 | 1(0~1250μm) |
| Ferro Block | 1 |
| Aluminum Block | 1 |
| Standard Pieces | 4 |
| Host | 1 |
| Tool Box | 1 |
| Operating Manual | 1 |
