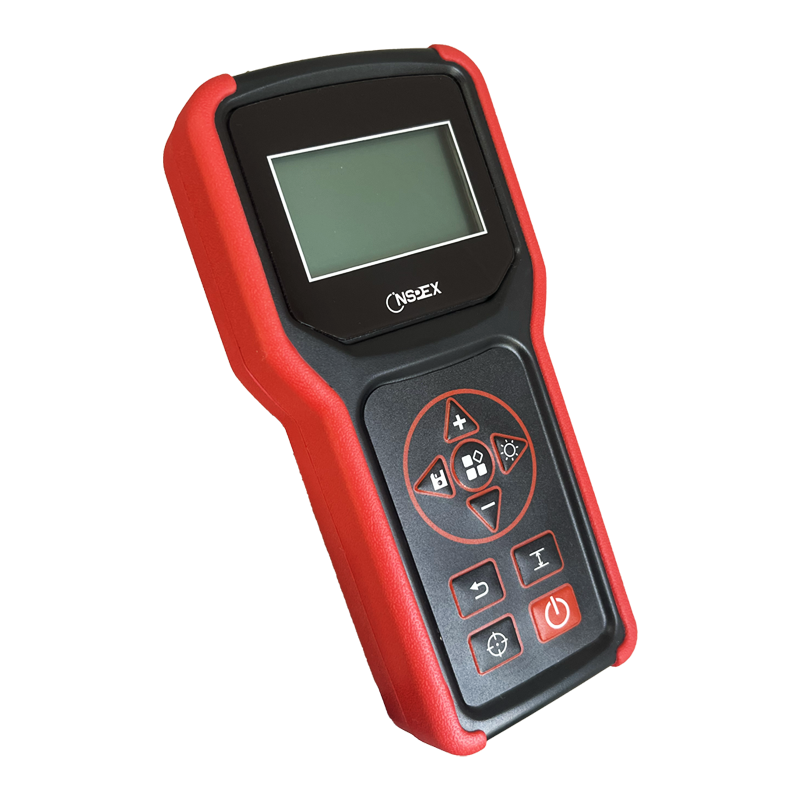

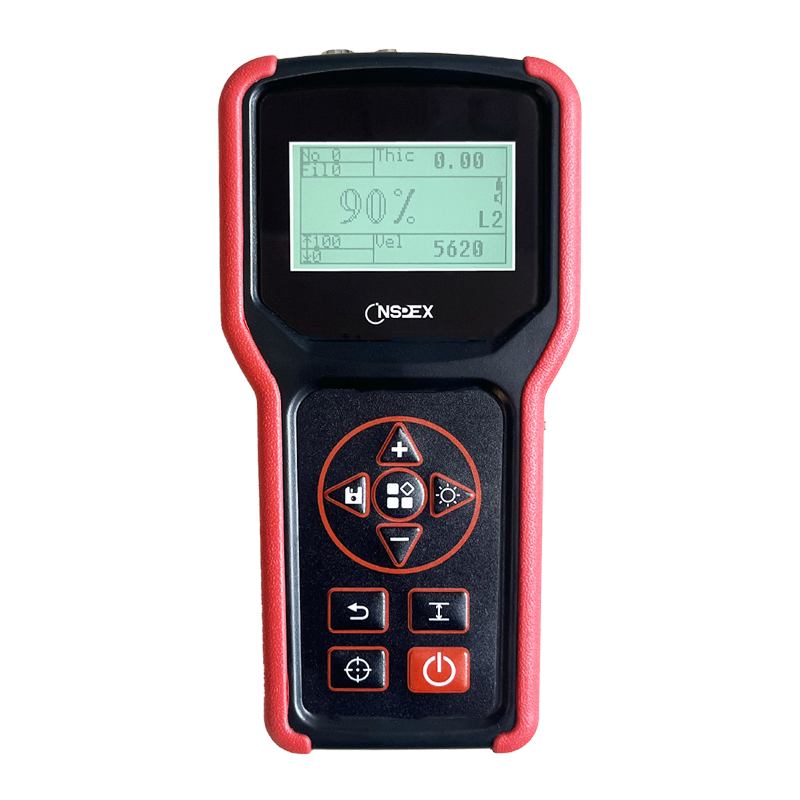

Ultrasonic Velocity (Nodularity) Tester INSPEX-Sonic 850
-
$567
$945
INSPEX-Sonic 850 takes non-destructive nodularity measurement to the extreme, enabling fast ultrasonic inspection for automotive safety components’ spheroidization rate. Reliable, high-performance and durable, it is your trusted on-site testing partner for an exceptional user experience. Compatible with reference blocks, it also supports creep rate measurement and excels at cast iron nodularity testing.
✅7-Day Return & Exchange Without Reason
✅365-Day Official Warranty
Guaranteed Safe Checkout
Parameters
Working Principle：Ultrasound (pulse-echo/echo-echo);
Sound speed: 4000-6000m/s
Spheroidization percentage: 50~ 100%, 1% grade: 1-6 grade;
Thickness range: 0.75-50 mm (depending on grain and surface conditions);
Thickness measurement resolution: 0.1mm (> 100mm)/0.01mm (<100mm)
Indication accuracy: 1%;
Zero automatic calibration: through the unique zero automatic calibration technology implementation of the probe zero real-time calibration;
Dimensions:165×82×30 mm;
Weight: 250g (including battery)
Storage Capacity：1000 Group
Work environment temperature：-20℃～70℃；
Humidity：5%～90% Surrounding environment without strong vibration, no strong magnetic field, non-corrosive medium and severe dust.
Frequency bandwidth：0.5-15MHz
Probe connector：LEMO 00 (C5)

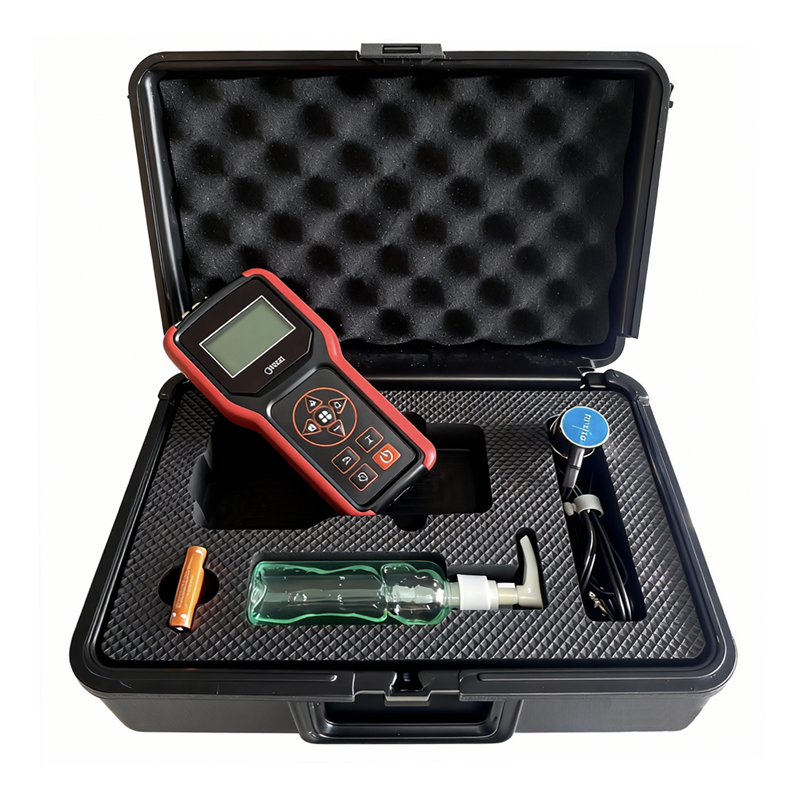

| The Instrument Host | 1 |
| Probe (DA408S) | 1 (2MHZ,22MM) |
| Tool Box | 1 |
| Battery | 4 (1.5V AAA ) |
| Operation Manual | 1 |
| Coupling | 1 |
